How to adapting VAG MQB car keys VW Golf VW Lamando VW Tiguan VW Teramont VW MAGOTAN MQB keys

WWW.U-OBD.COM - Auto ECU repair solution center |
How to adapting VAG MQB car keys duplicate VOLKSWAGEN keys programming Volkswagen group MQB car keys Tutorial

Abstract

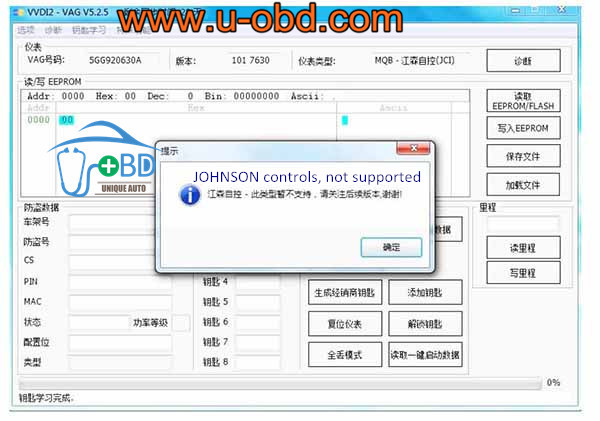

When programming VOLKSWAGEN GROUP VAG MQB car keys, The instrument cluster is JOHNSON Conrols, Known as JCI, Or the instrument cluster is CONTINENTAL VDO type, commonly seen as VDO2220 on Volkswagen, AUDI, SKODA. We can not acquire the IMMO Dump from the instrument cluster directly, that means to program a car key for VAG MQB types is not as easiler as we usually do. Here we introduce a way to tell how to programming car keys for VAG MQB platform cars use On bench MQB key adaption harness and VVDI2, Many car Model of Volkswagen group belongs to MQB type, including but not limited to VW Golf, VW Lamando, VW Tiguan, VW Teramont, SKODA Superb, Octavia, AUDI A3, A5, VW MAGOTAN etc.



Devices & Tools May need

Volkswagen Audi MQB platform car key making cables test platform VAS 5054A Full Systems with OKI Chip ODIS v4.3.3 Volkswagen diagnostic tools 2017 Newest Lonsdor K518ISE Key Programmer with Odometer Adjustment for All Makes Car Diagnostic-Tool

Process

To Programming the MQB keys on the bench, we usually have to dismantle the ECU or the Instrument cluster from the car, but considering that, the ECU is easier to dismantle than the instrument cluster and will not cause any fault code, So we recommend to dismantle the ECU is better than dismantle the instrument cluster. Then use the MQB harness to connect the ECU, the alternative MQB dashboard, J519 BCM, MQB gateway on the bench. Connect the VAS5054 to one of the OBD interface of the MQB harness, then Login ODIS, enter Immobilizer adaption.


2. ODIS online adapting.

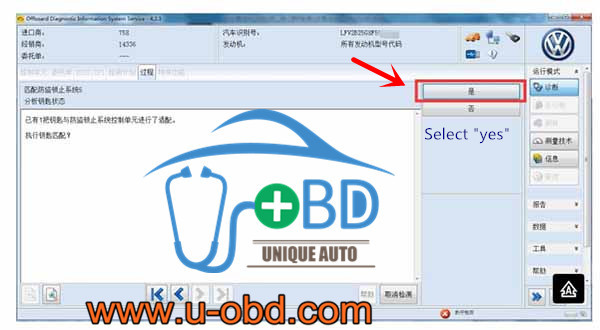

3. Select special function, select 25th adapting Immobilizer, click testing, follow the directions to adapting

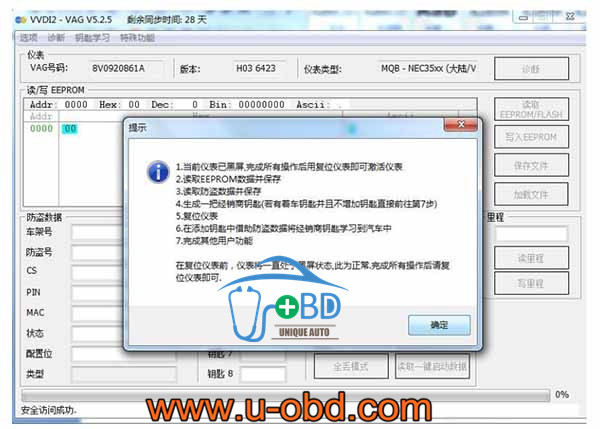

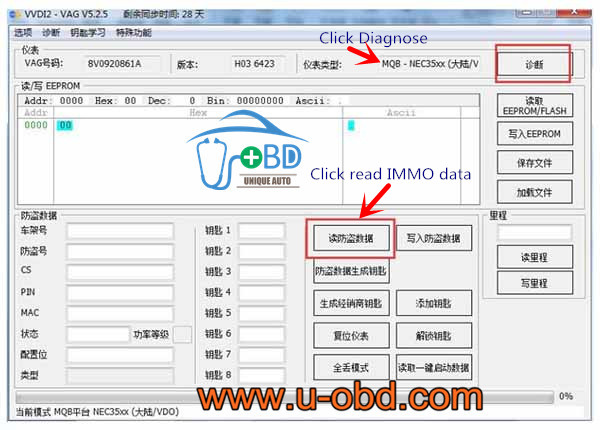

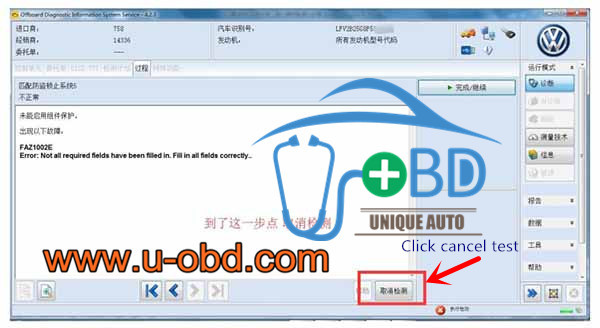

4. Click cancel, The alternative dashboard had already complete adaption with the car's ECU, Then connect the VVDI2, select MQB-35XX VDO, Click the read IMMO data button









5. Attention. It need put the original car keys at first, to read the original key data first

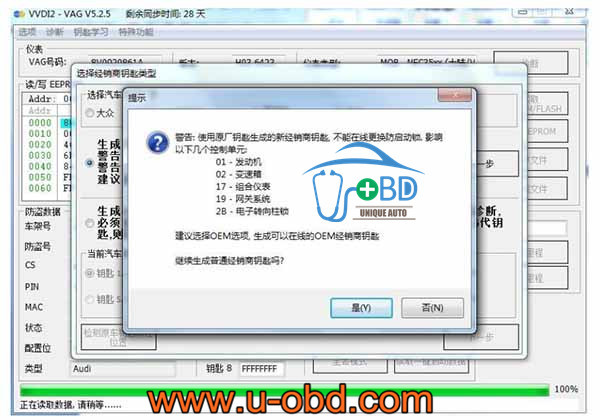

6. When the finish the dealer key generation, the ECU can install back to the car, Then use VVDI loading the dump to study the key to the car. click the keys learning, select MQB-NEC35XX VDO type,



7. It shows on the instrument cluster the keys 2 of 2 had already complete learning, then test if the keys can start the car and the remote works well or not


Note

MQB keys for PASSAT is exclusive use; MQB keys for Magotan can be replaced by Golf 7 MQB keys; MQB Keys for AUDI A3 A6L can be replaced by Golf 7 keys; MQB keys for lamando can be replaced by Golf 7 keys

Key adaption test paltform & harness for other car brands

AUDI A4 Q5 Key adaption harness coding platform cables AUDI 3G 3GPlus Audio entertainment MIB MMI test platform harness cables AUDI 01J Gearbox TCU test harness platform cables
Volkswagen Audi MQB platform car key making cables test platform Volkswagen 35xx test platform VW ECU adapting key making platform AUDI J518 Test platform Key adaption Cables applied to A6 Q7

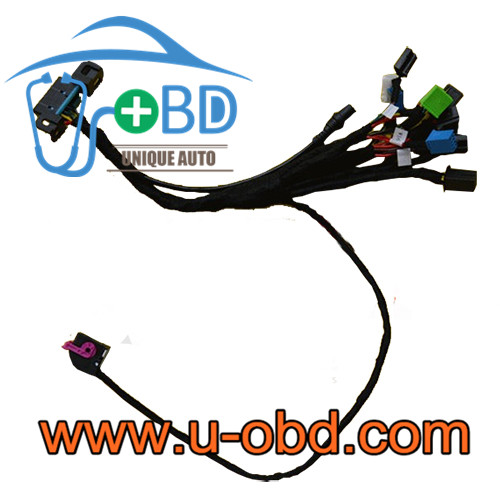

Audi fifth immobilizer test platform for AUDI A6 & A8 BMW FEM & BDC key making platform with gearbox plug engine cables optional Mercedes Benz EZS ESL key duplication harness test platform cables 5 in 1 with dashboard plug
Mercedes Benz 272/273 ME9.7 ECU renew cable 722.9 TCU renew cable gear shift Module ISM renew cable kit BMW MSV MSD DME test cables platform for ISN reading Mercedes Benz test harness full function test paltform compatible 12 types Mercedes ECU
Mercedes Benz W164 Full function key programming harness test platform cables BOSCH EDC7 ECU Quick diagnose and programming cable AUDI 0AM Gearbox TCU test harness platform cables
AUDI Multitronic 0AW Gearbox TCU test harness platform cables BMW CAS3 CAS3 plus test platform harness cables BMW EGS 6HP Gearbox test harness TCU platform cables

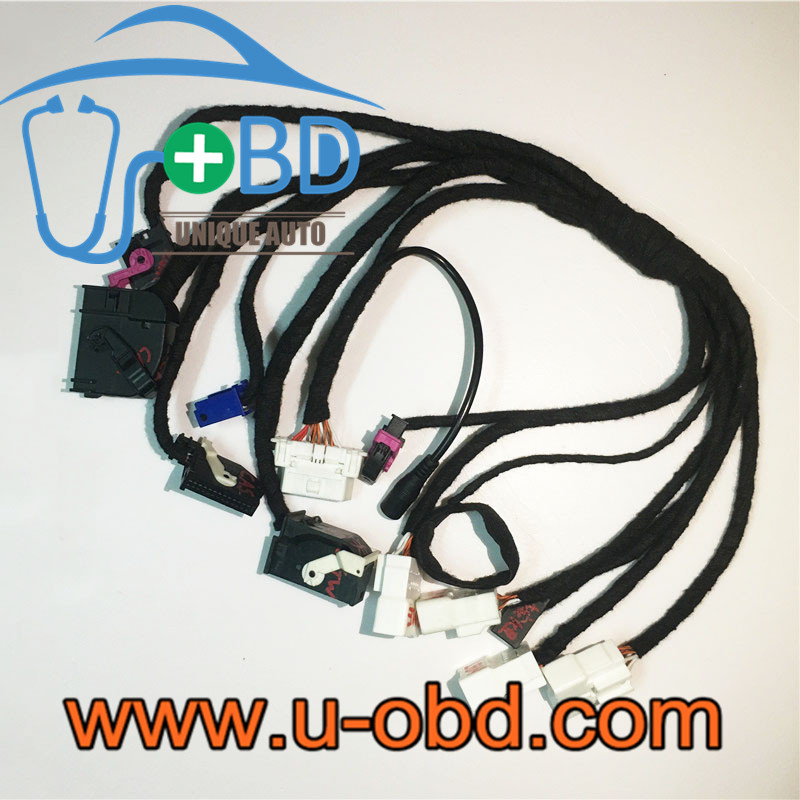

BMW EGS 8HP Gearbox test harness TCU platform cables BMW CAS4 test platform key adapting cables Chevrolet CRUZE test platform key adapting cables
